Product Name:

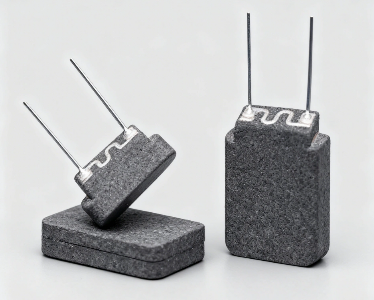

High-Performance Metal Ceramic Heating Element (MCH / Ceramic Heater)
Product Material:
92%-96% High-purity Alumina ($Al_2O_3$) or Silicon Nitride ($Si_3N_4$) as ceramic substrate; Internal heating circuit made of refractory metals such as Tungsten (W) or Molybdenum-Manganese (Mo-Mn); Lead wires made of Nickel or silver-plated copper.
Material Characteristics:
High power density with rapid thermal response, Integrated co-firing structure (Heating circuit protected from oxidation), Exceptional insulation resistance ($>10^{12} \Omega$), Acid and alkali corrosion resistance, High mechanical strength, Small footprint with customizable shapes (Rod, Tube, Plate), Environmentally friendly (Lead and cadmium free).
Application Fields:
Electronic cigarette atomizers, Instant water heaters, Hair straighteners/curlers, Oxygen sensors, Soldering iron heating cores, Mold heating, Precision laboratory instruments, 3D printer nozzles.
Application Industries:
Biomedical (Blood analyzers), Advanced Machinery (Miniature heaters), New Energy (Battery pre-heating), Fluid Control (Gas temperature stabilization), Electronic Engineering (Soldering tools), Aerospace (Sensor heating), Petrochemical (Viscosity testers), Broad Semiconductor (Component baking).
Processing Difficulties:
Ensuring resistance consistency during high-temperature co-firing (Shrinkage control), Achieving high-strength brazing between lead wires and internal electrodes, Preventing ceramic micro-cracks under rapid thermal cycling, Managing multi-layer circuit alignment for complex geometries.
Processing Flow:
Ceramic powder preparation → Tape casting (Green sheets) → Heating circuit screen printing → Multi-layer lamination → High-temperature co-firing ($1600^\circ\text{C}+$) → Precision grinding and cutting → Lead wire brazing → Insulation and resistance sorting → Power-on aging test → Packaging.
Delivery Period:
Standard rod/tube elements: 20-35 days, Customized complex geometries: 40-60 days.
This Metal Ceramic Heating Element (MCH) represents a leap in energy-efficient heating technology. By co-firing refractory metal heating circuits directly within a dense ceramic matrix (Alumina or Silicon Nitride), it creates an integrated, oxidation-proof heat source. Unlike traditional heating wires or PTC elements, MCH provides a significantly faster ramp-up speed and remains chemically stable at high temperatures. Its compact design and superior dielectric strength make it the ideal choice for applications requiring precise, localized, and reliable heat in professional electronics and medical devices.
Key Features
Instant Heat Recovery: Reaches operating temperatures in seconds with high energy conversion efficiency.
Superior Safety: Internal circuit is fully encapsulated, preventing electrical leakage and surface oxidation.
Extreme Durability: Resistant to high-temperature creep and chemical erosion for a longer service life.
Design Versatility: Available in miniature rod, tube, or flat plate configurations to fit complex mechanical assemblies.
Eco-Friendly: Compliant with RoHS/REACH standards, providing a clean, pollution-free heat source.
